MADE BY BOLD MAKER

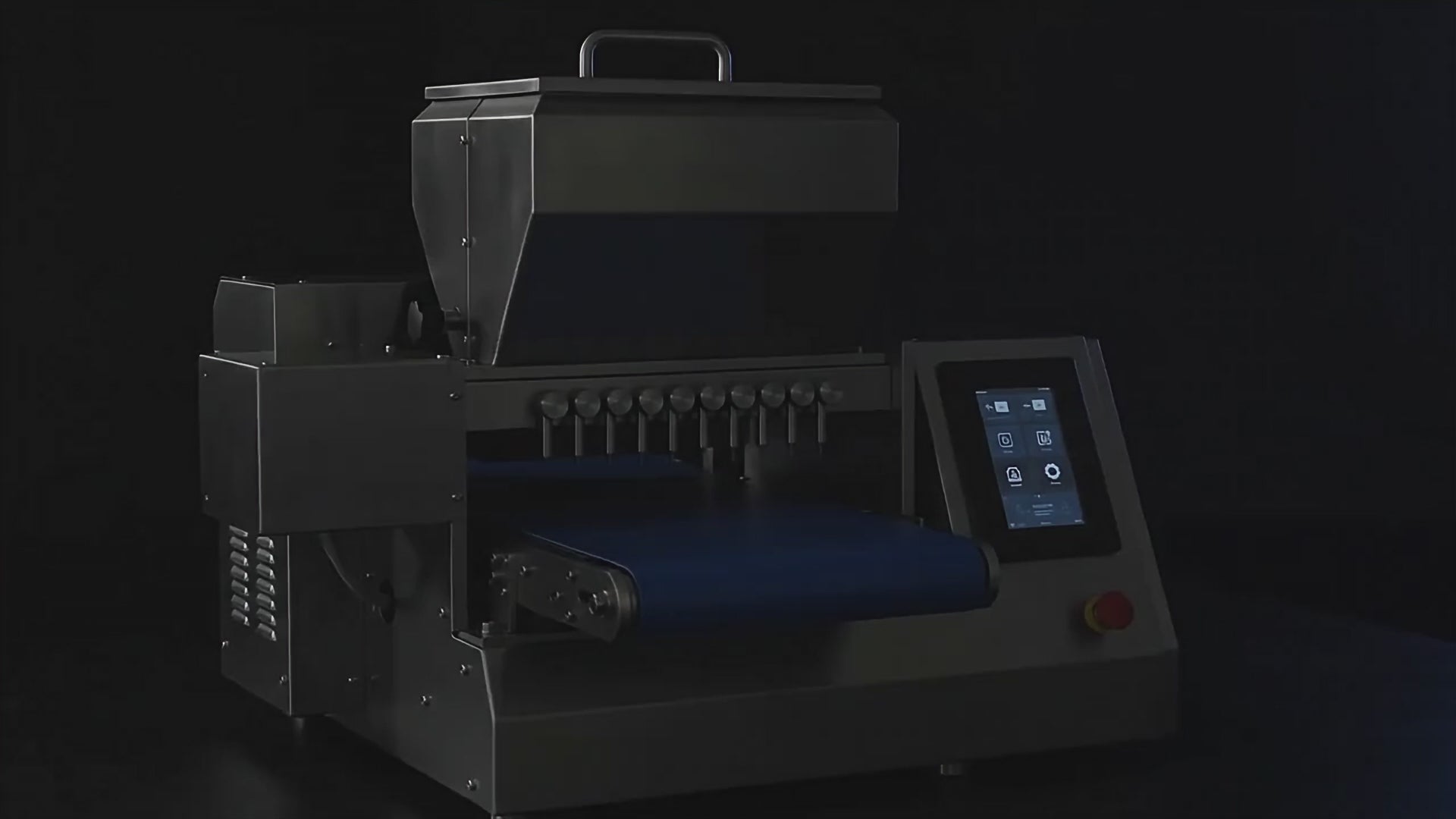

SD410 Smart Depositor
Ten Nozzles, an 18-liter heated hopper and precision servo-control, engineered for repeatable confectionery production.
High-Precision Servo Motor depositing

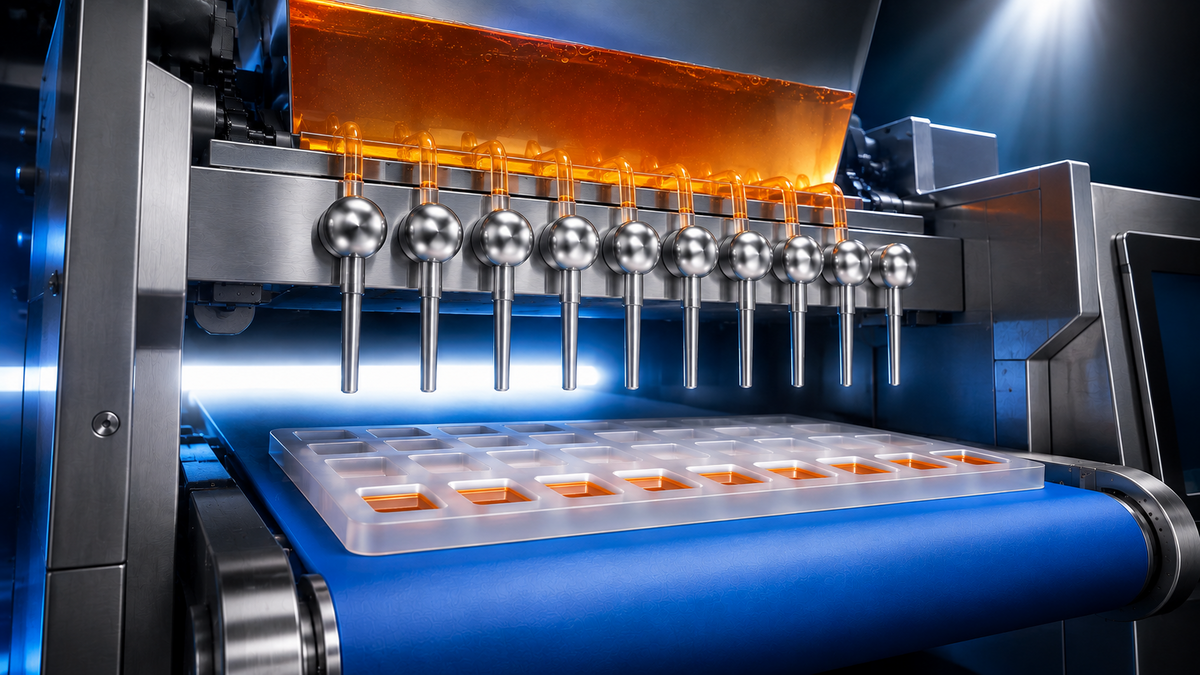

10 Nozzles Driven by Smart Servos
Precise depositing for large and small fills. Rapid filling. Tune-able ramping profiles. Anti-drip valve for clean depositing with no mess.

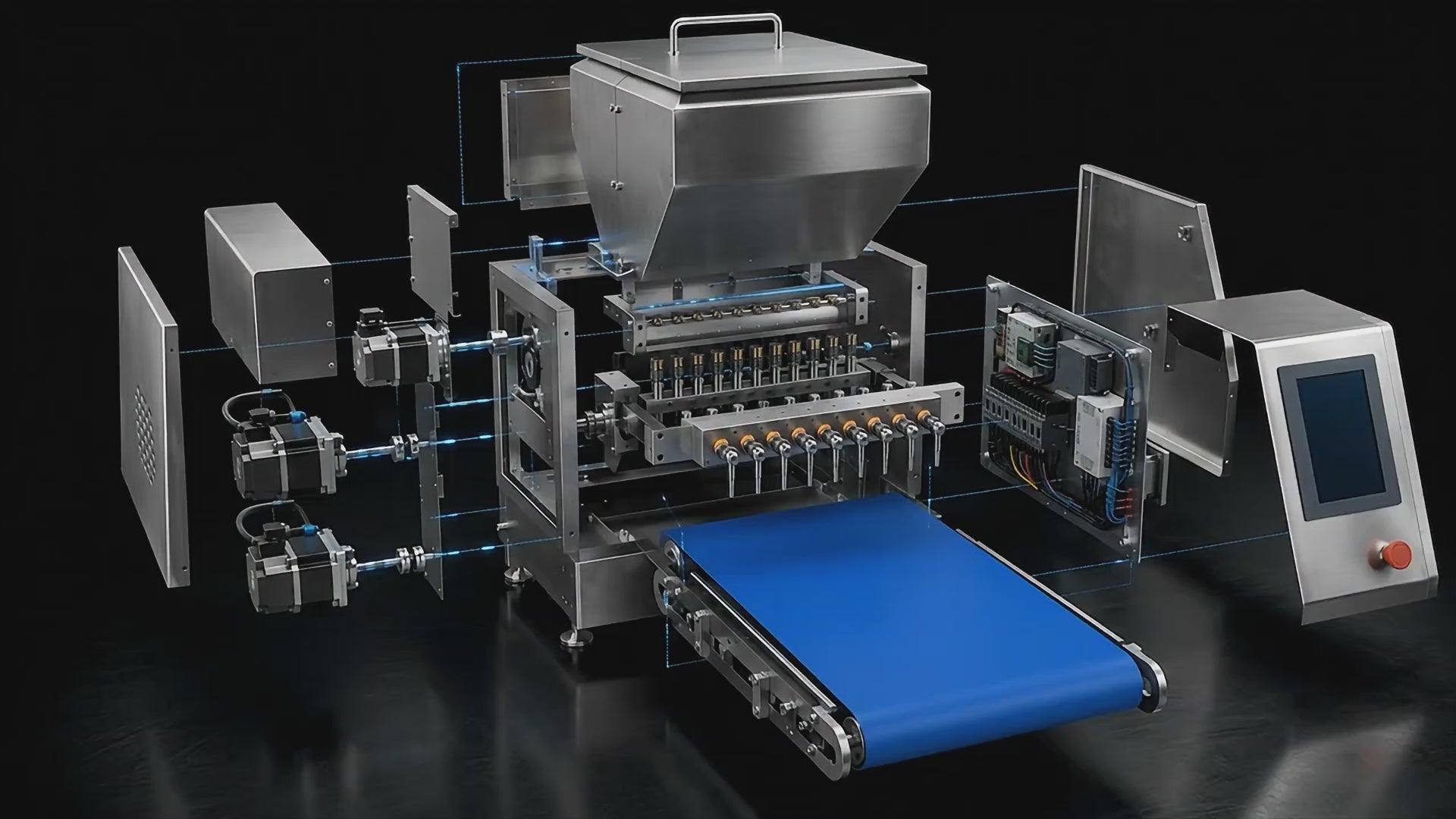

Precision Control in every movement

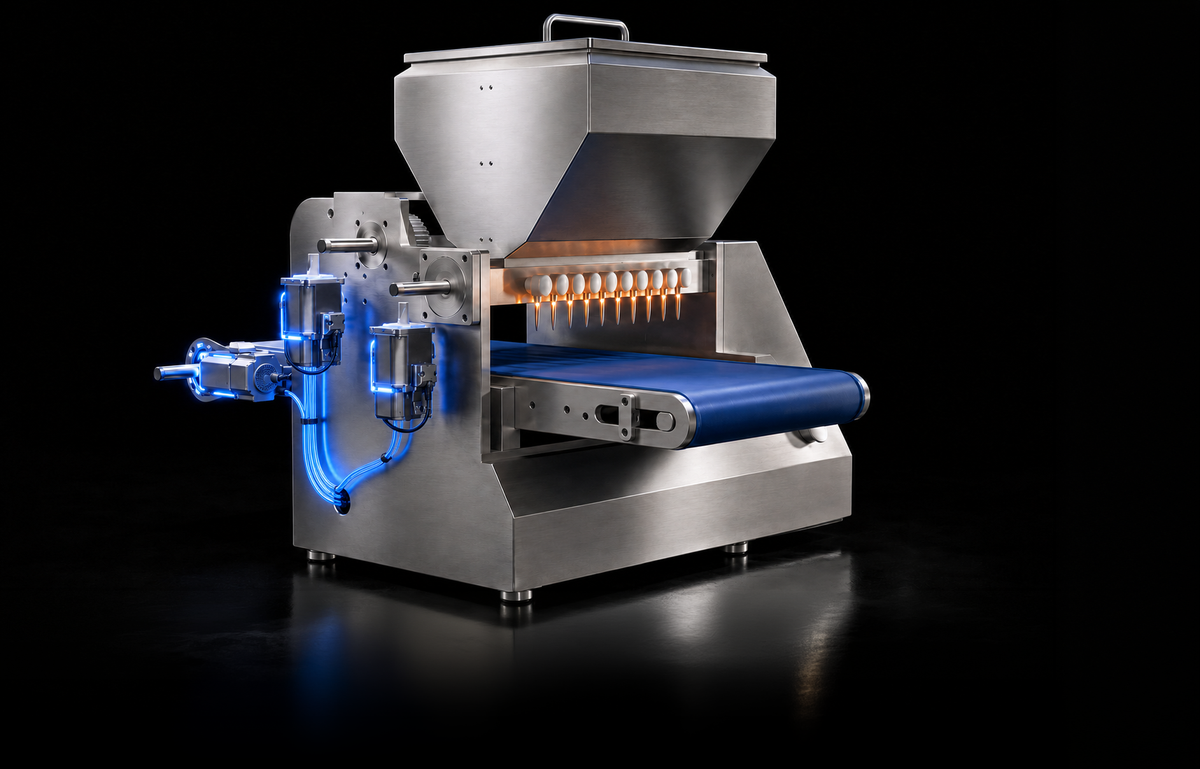

3 Smart Servo Motors for full control.
Three encoder-equipped servo stepper motors close the loop on the movements that define every deposit.
Piston drive
Conveyor drive
Valve drive
SERVO-DRIVEN SMART CONVEYOR
Automatic feeding & Position control
Auto start & stop mold-detection sensors
Encoder feedback
Organized, serviceable
Mechanical drive
Piston drive
Pulls product in, drives it out and defines deposit volume.
Conveyor drive
Encoder-controlled mold indexing and repeatable positioning.
Valve drive
Disconnects all ten nozzle chambers for precise anti-drip cut-off.
Encoder feedback verifies commanded movement
Organized, serviceable industrial control architecture
Mechanical drive and control logic separated by function
SERVO-DRIVEN SMART CONVEYOR
Automatic feeding & Position control
Auto start & stop mold-detection sensors
Encoder feedback verifies commanded movement
Organized, serviceable industrial control architecture
Mechanical drive and control logic separated by function
Why SD410
More control in every deposit. More output from every shift.

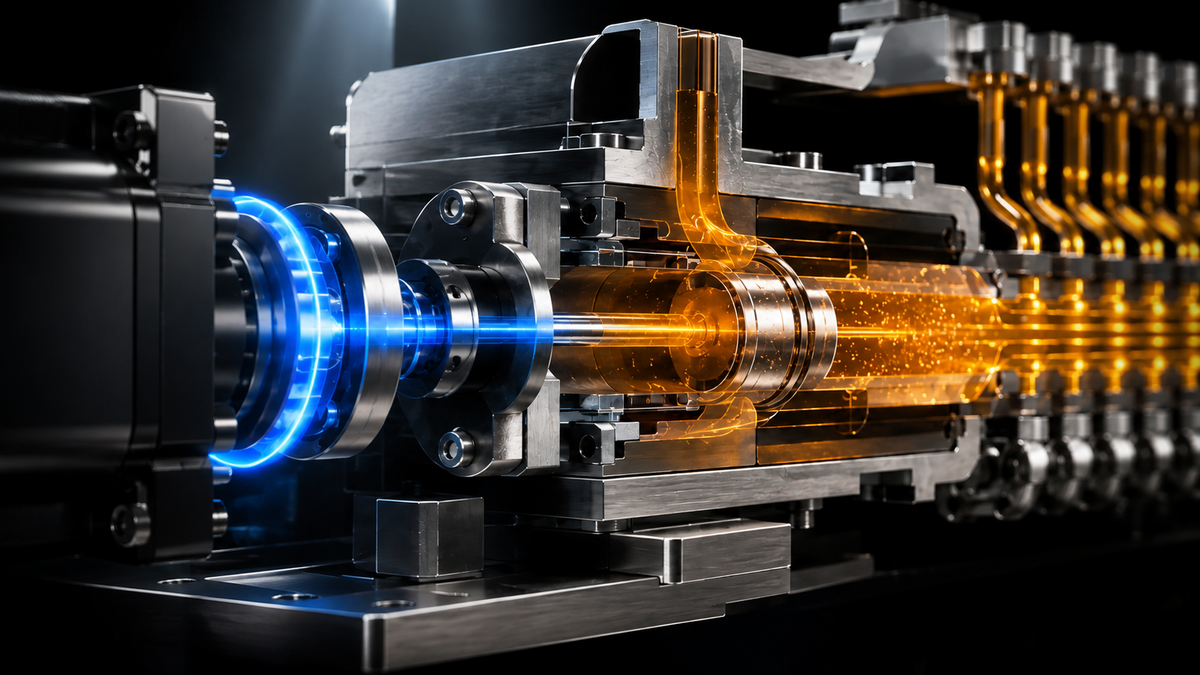

Closed-loop metering
Control the stroke. Control the gram.
One encoder-equipped servo stepper drives the pistons forward and back. The reverse stroke draws product into the chambers. The forward stroke pushes it out - and the exact travel defines deposit volume.
- Precision piston travel sets the delivered volume
- Encoder feedback supports repeatable movement
- Tighter piece weights with less overfill

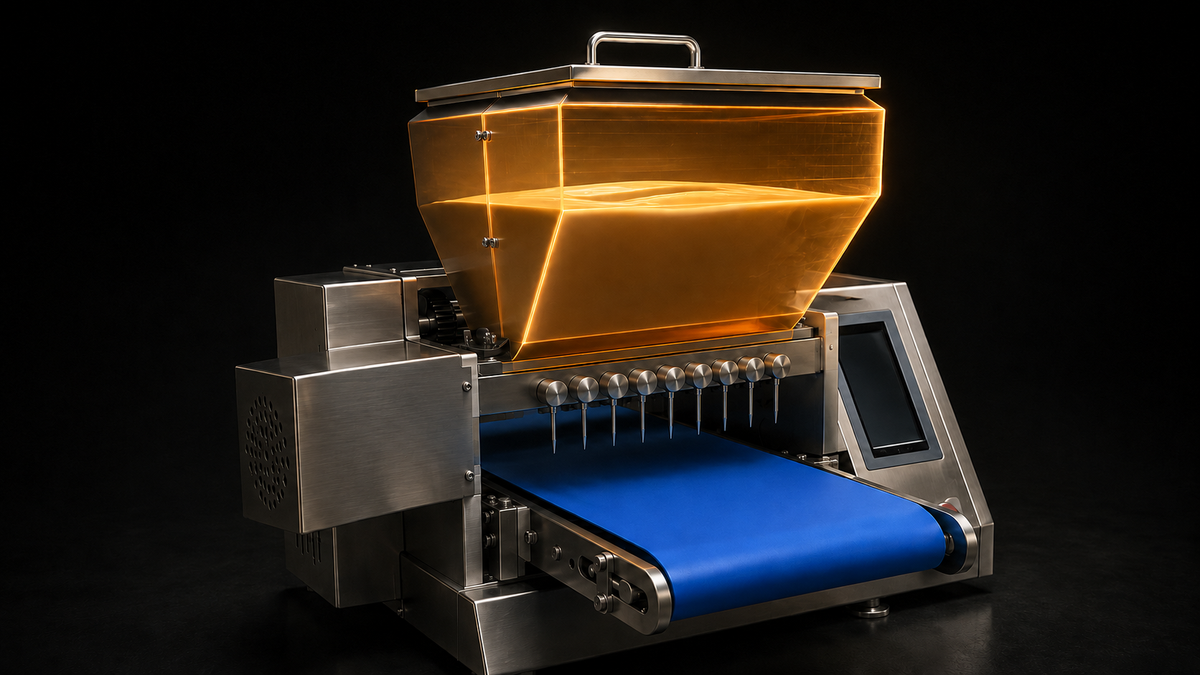

Heated capacity
18 liters. Stay in motion.
A larger heated product reservoir means longer uninterrupted runs, fewer operator interventions and a more stable process window.

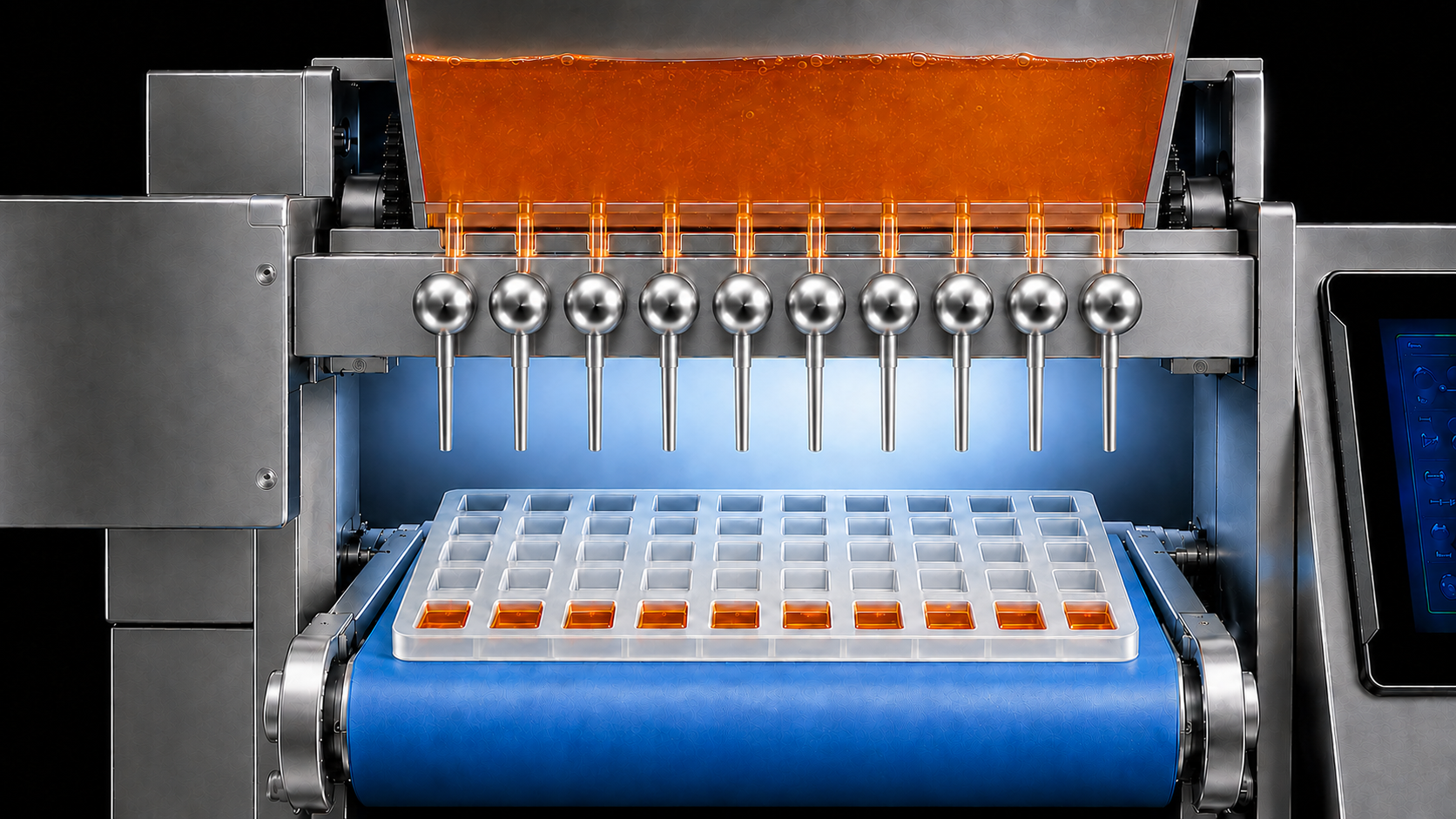

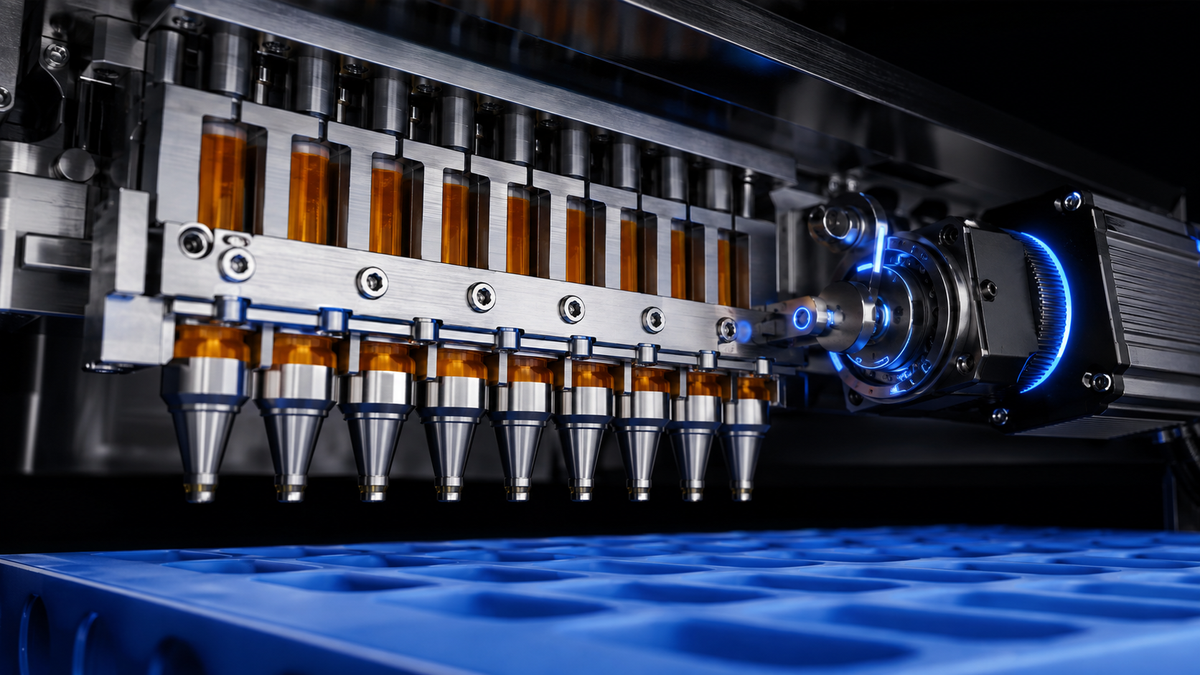

Servo valve cut-off
Ten chambers. One decisive stop.
A dedicated encoder-driven servo controls the shared nozzle-block valve, disconnecting all ten chambers together. That clean separation sharpens fill control and prevents product from trailing between cavities.
- Simultaneous cut-off across all ten nozzles
- Cleaner mold surfaces and conveyor
- More precise starts, stops and cavity fills

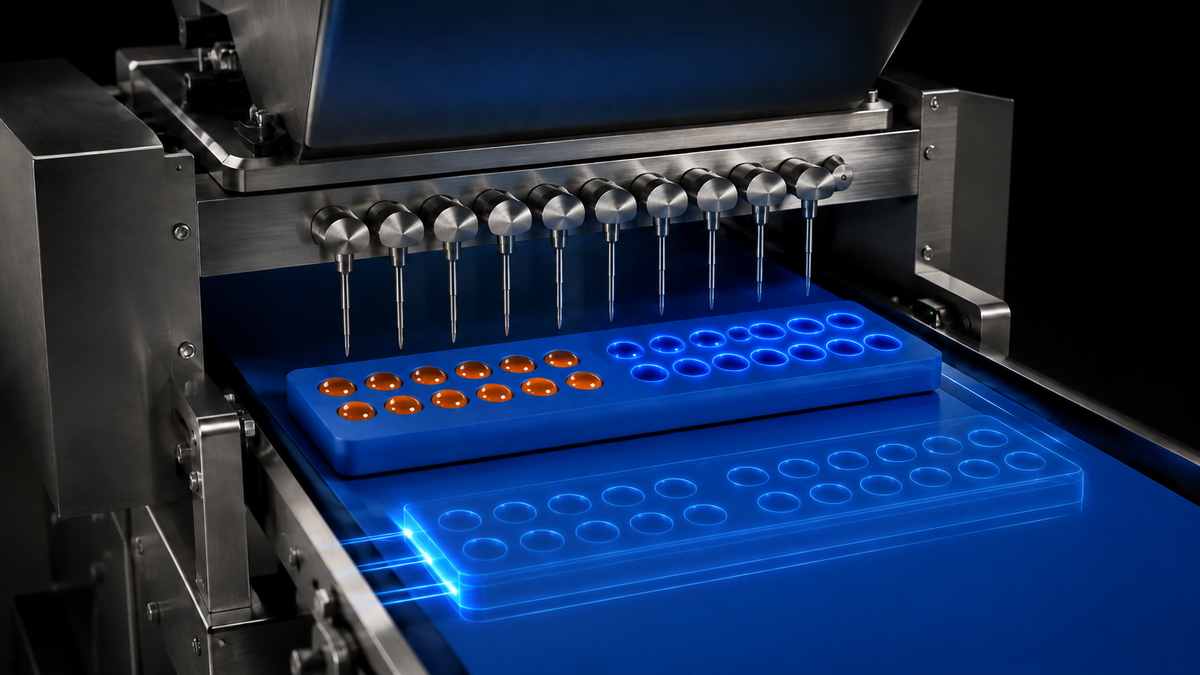

Servo indexing
Ten nozzles. Twenty across.
The encoder-driven conveyor repositions wider molds for a precise second pass. You get the productivity of a wide format without moving up to a much larger depositing line.
- Solid
- Center-fill
- Two-color
- Chocolate
- Caramel
- Hard candy

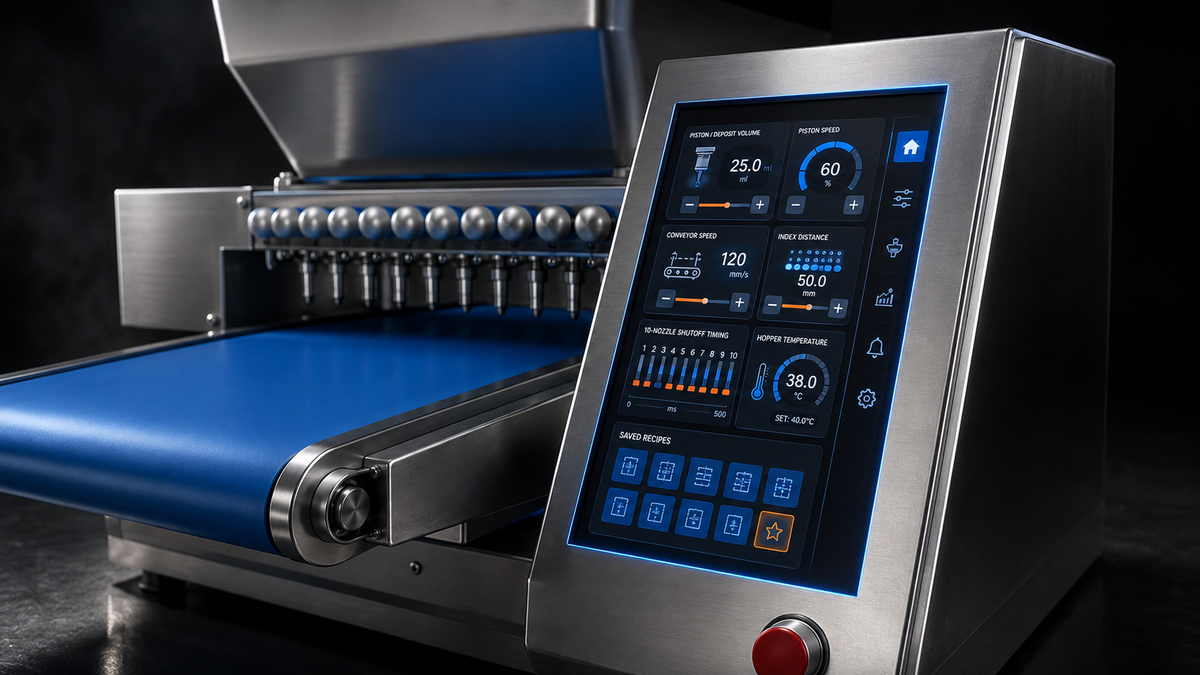

Speeds + feeds
Every movement. At your fingertips.
Dial in the product, motion and timing parameters that shape the cycle. Save the working process as a recipe, recall it fast and give operators one clear control surface.
- Piston volume and forward/reverse speed
- Conveyor speed and mold index distance
- Ten-nozzle shutoff timing and hopper temperature
- Saved recipes for repeatable changeovers
Training + support
You are never alone with a Bold Maker machine.
The machine is only half the purchase. Every SD410 is supported by practical training, a growing answer-first video library and a team that understands both molds and depositing.
“When production has a question, Bold Maker is our first call.”
JT
01
Closed-loop metering
Control the stroke. Control the gram.
One encoder-equipped servo stepper drives the pistons forward and back. The reverse stroke draws product into the chambers. The forward stroke pushes it out - and the exact travel defines deposit volume.
- Precision piston travel sets the delivered volume
- Encoder feedback supports repeatable movement
- Tighter piece weights with less overfill
02
Heated capacity
18 liters. Stay in motion.
A larger heated product reservoir means longer uninterrupted runs, fewer operator interventions and a more stable process window.
03
Servo valve cut-off
Ten chambers. One decisive stop.
A dedicated encoder-driven servo controls the shared nozzle-block valve, disconnecting all ten chambers together. That clean separation sharpens fill control and prevents product from trailing between cavities.
- Simultaneous cut-off across all ten nozzles
- Cleaner mold surfaces and conveyor
- More precise starts, stops and cavity fills
04
Servo indexing
Ten nozzles. Twenty across.
The encoder-driven conveyor repositions wider molds for a precise second pass. You get the productivity of a wide format without moving up to a much larger depositing line.
- Solid
- Center-fill
- Two-color
- Chocolate
- Caramel
- Hard candy
05
Speeds + feeds
Every movement. At your fingertips.
Dial in the product, motion and timing parameters that shape the cycle. Save the working process as a recipe, recall it fast and give operators one clear control surface.
- Piston volume and forward/reverse speed
- Conveyor speed and mold index distance
- Ten-nozzle shutoff timing and hopper temperature
- Saved recipes for repeatable changeovers
06
Training + support
You are never alone with a Bold Maker machine.
The machine is only half the purchase. Every SD410 is supported by practical training, a growing answer-first video library and a team that understands both molds and depositing.
“When production has a question, Bold Maker is our first call.”
JT

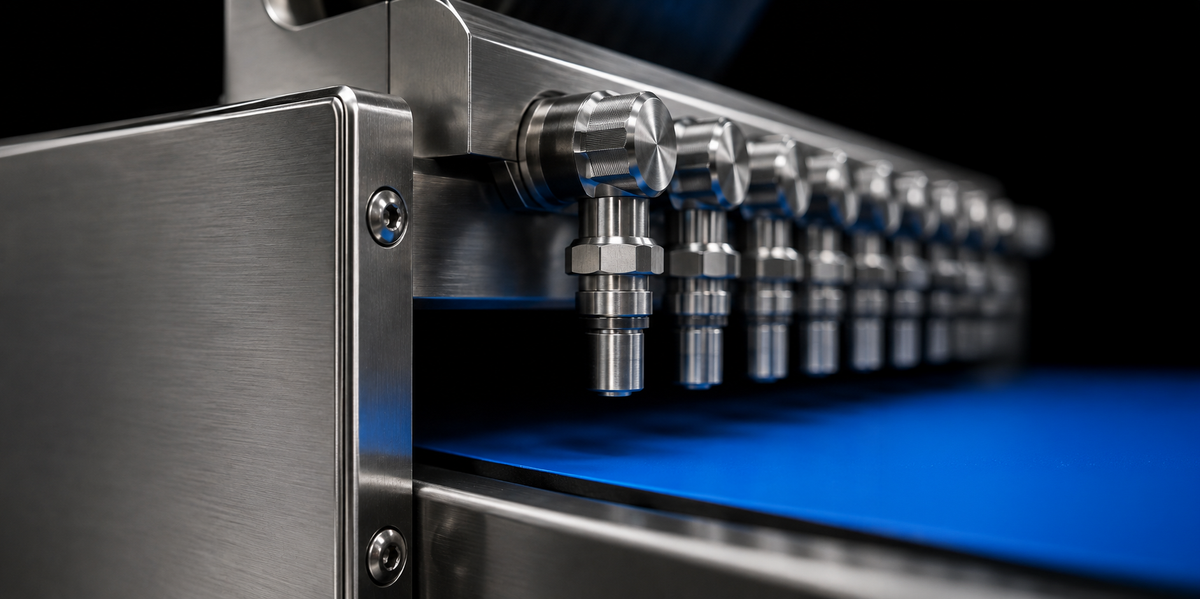

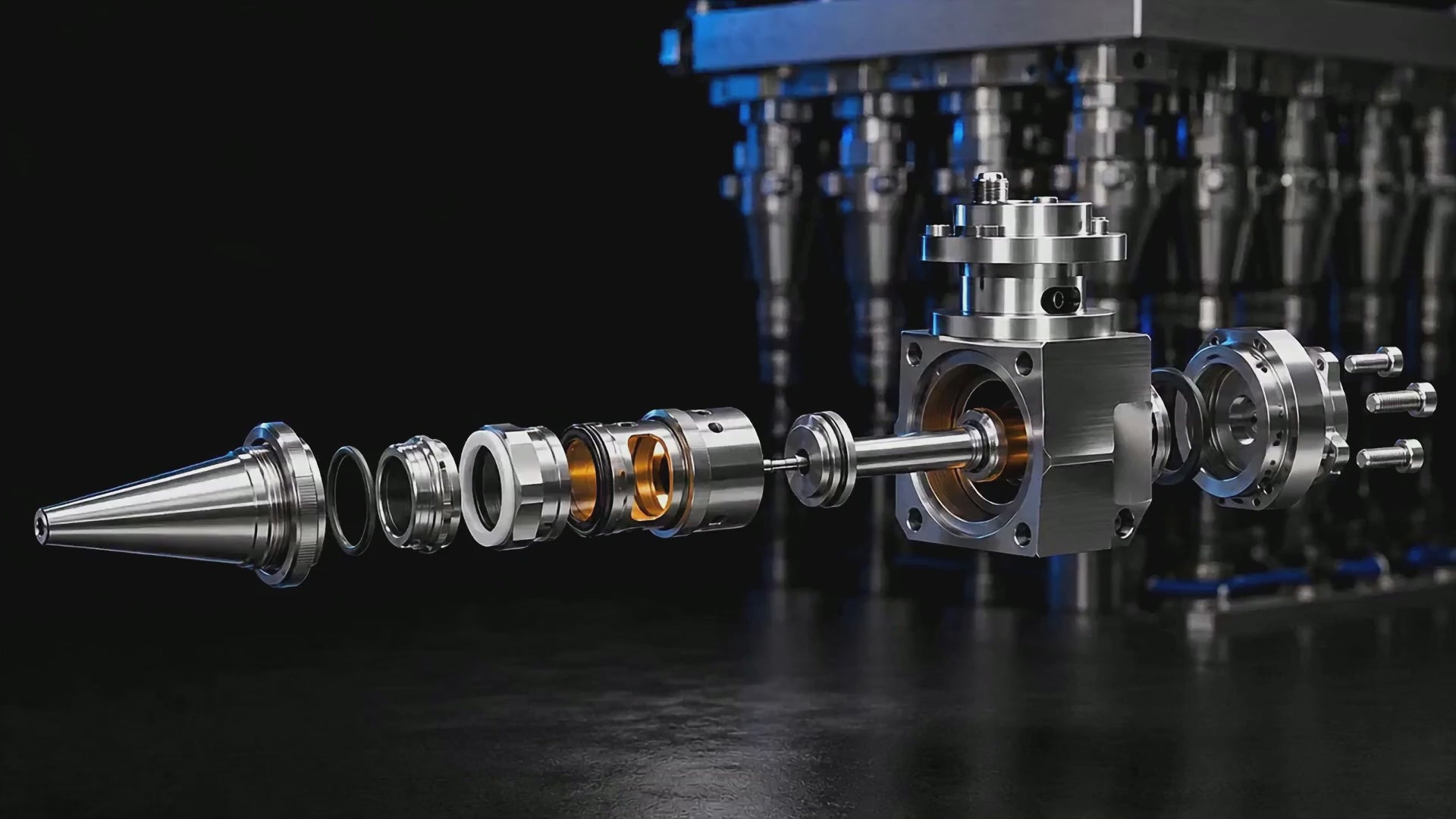

STAINLESS STEEL NOZZLE ASSEMBLIES
Precision machining, optimized for candy.
We designed our nozzles for easy disassembly and cleaning, long service life, and precision in every deposit.

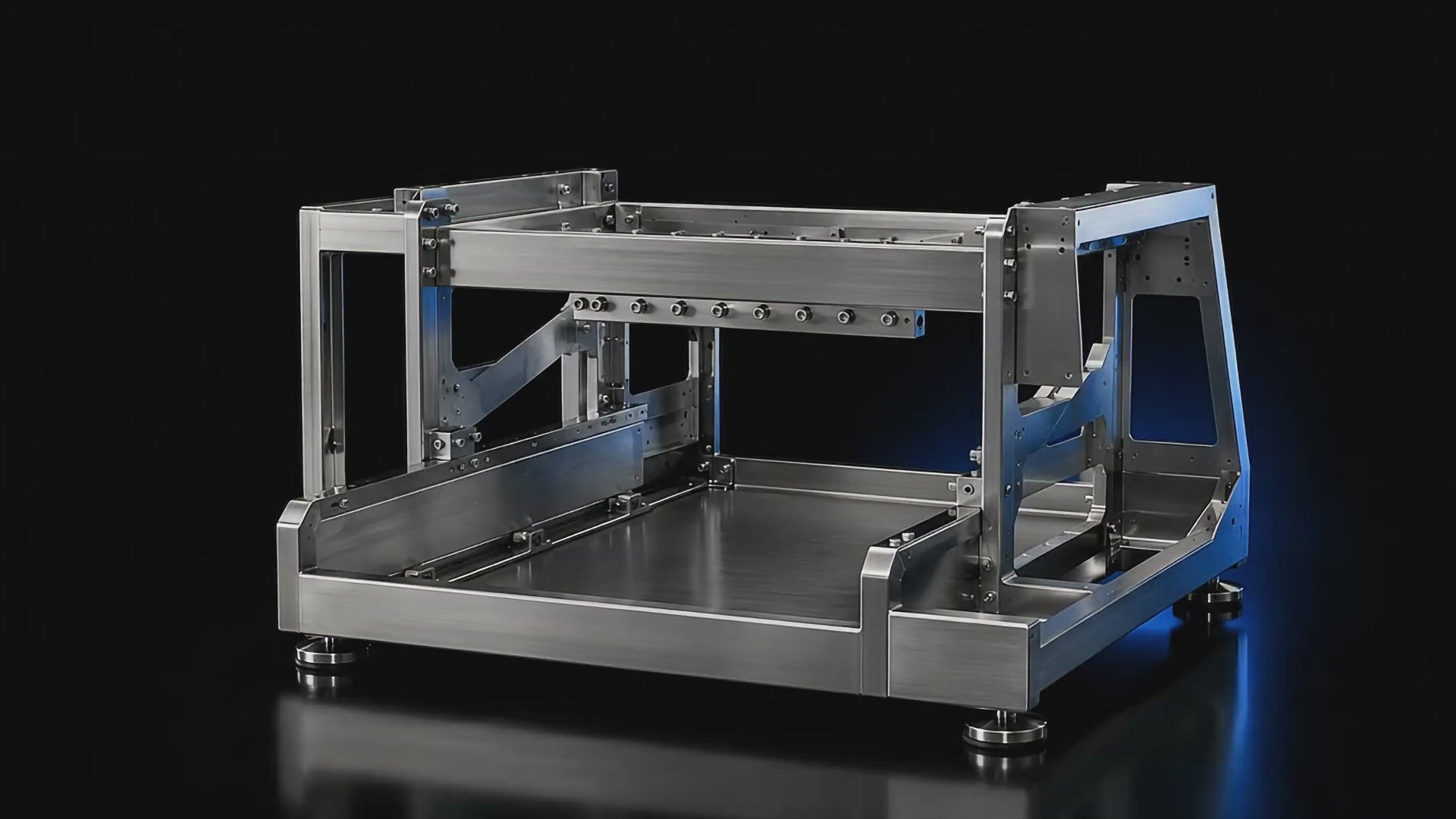

Stainless STEEL CONSTRUCTION
Built inside-out for food production.
The machine chassis, hopper, nozzles, valves, and hardware are made from high quality stainless steel - chosen for durability, cleanability and a professional production environment.
Production-Ready
Stainless Steel Enclosure
Fully-enclosed design is easy to clean and maintain in any production kitchen.
Food-contact suitability and final compliance depend on the production configuration, materials documentation, sanitation process and applicable requirements.
Unlimited capabilities
Built to deposit it all
Pectin or Gelatine Gummies
Solid single-shot candies.
Center-filled
A controlled shell surrounding a liquid center.
Two-color & layered
Crisp layers that turn formulation into visual impact.
Chocolate
Smooth deposited chocolate with a premium finish.
Caramel & hard candy
One platform for a wider confectionery roadmap.
Functional gummies
Uniform pieces built around repeatable dosing targets.
Built by people who know molds
Machine, mold and process - under one roof.
Since 2015
Bold Maker has helped confectioners and food manufacturers turn product ideas into production tooling for a decade.
Proprietary, not an import
The SD410 is a proprietary Bold Maker machine backed from Amesbury, Massachusetts - your first call for service and process questions.
Training + support
Practical onboarding plus a growing answer-first video library, backed by a team that understands both molds and depositing.
Direct access
“When production has a question, Bold Maker is our first call.”

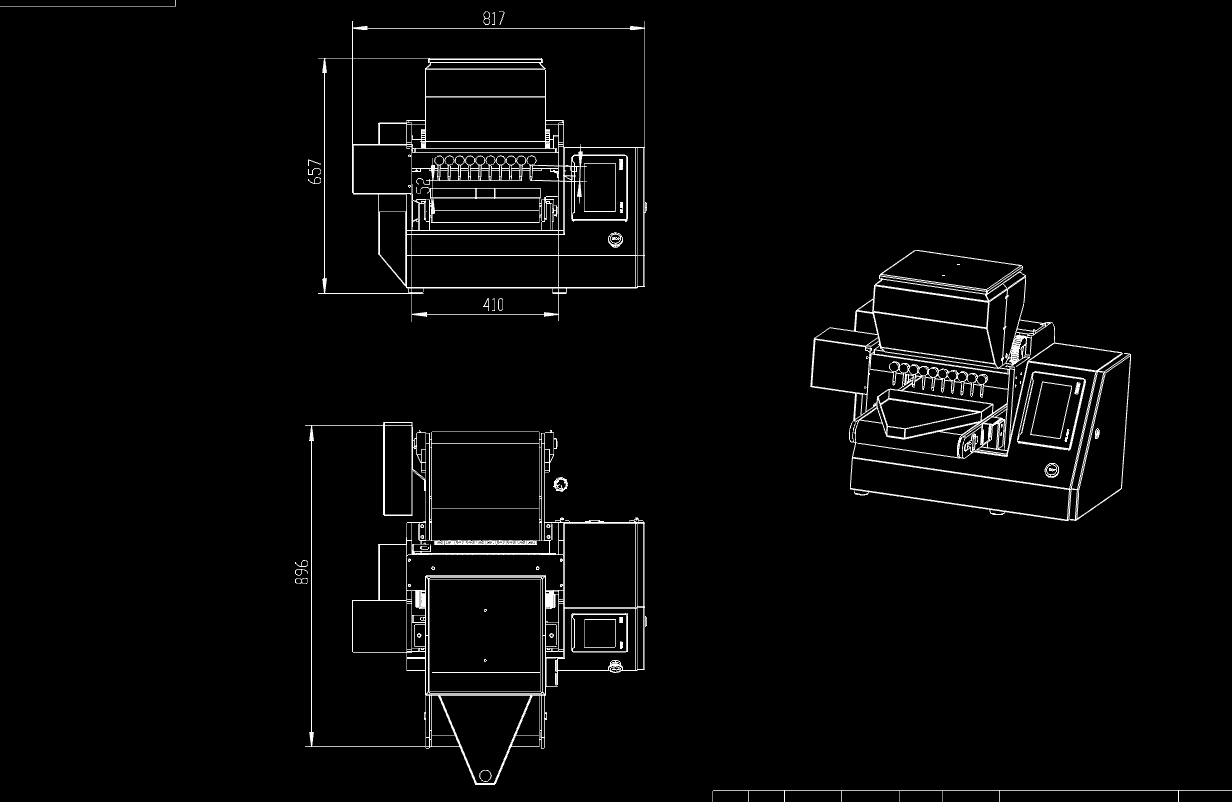

Technical specifications
Designed to fit serious production.
Request full specification sheet
Dimensions interpreted from design engineering drawing, and are subject to change.
Choose your production package
One machine. Three ways to start.
Pick the path that fits your launch. Every package includes onboarding, training and direct Bold Maker support - and every order is reviewed with you before payment.
01 / Machine
SD410 Machine
The complete depositor, ready for your existing mold program.
- SD410 Smart Servo Depositor
- Training and onboarding
- Direct Bold Maker support
02 / Stock molds
Production Starter
Machine plus your choice of proven stock mold designs.
25
per mold
- Everything in Machine
- 25 select stock molds
- Quantity discounts on molds
03 / Custom molds
Custom Launch
Machine, custom tooling and a mold run built around your product.
25
per mold
- Everything in Machine
- One-time custom tooling: $4,450
- 25 custom molds
Pricing shown before tax, shipping and freight. Final order is subject to application review and written confirmation.
